How to turn off a BeadaPanel display(s) when powering down your PC

[Jayvee]

How to turn off a BeadaPanel display(s)
when powering down your PC

Short Answer:
You can power down a BeadaPanel by editing the animation.ini file in the console folder and setting the backlight value to 0.
This will turn off the backlight in standby mode.

Full Procedure for Windows users:

1.            Disable communication with ADIA64 and the BeadaPanel.
In AIDA64: File > Preferences > General and deselect all the checkbox options,
click APPLY and Restart the PC

2.            Next you have to access the storage on the BeadaPanel,
 Run: BeadaTools11 - This file is an application (.exe) file
Download:
https://1drv.ms/f/s!ArGfiTxjUGUlgP858T2dY7OGrDOhTQ?e=KOiG19

Open and click the BeadaTools11.exe file and it will set up a new USB drive
in Windows Explorer.
                *Click BeadaTools11.exe again if you have more than one BeadaPanel display.
Open the new drive and locate the animation.ini file  in the console folder.
Open the animation.ini file and set backlight = 0
SAVE THE FILE.

3.            Power down the PC and unplug the power cord to get out of BeadaPanel's USB mode.
Power the PC and activate communication with ADIA64 and the BeadaPanel,
File > Preferences > General and select all the checkbox options, click APPLY



Restart your PC,
YOU'RE DONE!

Example of the animation.ini file for BeadaPanels:
;
;Configuration file for BeadaPanel animation palying
;
;[alameda]
;type                                                  = clock
;keep-aspect-ratio                           = true
;pattern                                             = ball
;valignment                                       = center
;halignment                                       = center
;time-format                                      = %r
;font-desc                                          = LCDMono2, 72
;foreground-color                              = 0xffff0000
;color                                                  = 0xffffffff

[plano]
type                                                      = album
width                                                    = 800
height                                                   = 480
keep-aspect-ratio                               = truekwise

The animation.ini file for BeadaPanel has the following attributes that control its behavior:
type: the type of animation, such as clock or album
width: the width of the animation in pixels
height: the height of the animation in pixels
keep-aspect-ratio: whether to keep the aspect ratio of the animation or not
location: the location of the media files for the animation
loop: whether to loop the animation or not
interval: the interval between each frame of the animation in seconds
backlight: the brightness of the backlight in standby mode
rotation: the rotation of the animation, such as clockwise or counterclockwise
You can edit these attributes with any text editor, such as Notepad, and save the file to change how the BeadaPanel displays the animation.

This file configures the BeadaPanel to display a clock animation with a width of 800 pixels and a height of 480 pixels,  keeping the aspect ratio. The media files for the clock animation are located in the /media/clock folder on the BeadaPanel internal storage. The animation loops and has an interval of 5 second between each frame. The backlight is turned off in standby mode and the animation is rotated counterclockwise.

DEFINITION:
An animation.ini file is a type of INI file that stores settings for an animation program or feature. An INI file is a plain text file that contains keys and values that dictate how something else should operate1. For example, the animation.ini file for BeadaPanel controls the type, size, location, loop, interval and backlight of the animation that plays on the display2. Other programs that use animation.ini files include Nemesis, a Skyrim mod that generates custom animations3, and Opera, a web browser that supports animated themes4. You can open and edit an animation.ini file with any text editouch as Notepad.

[OzDeaDMeaT]

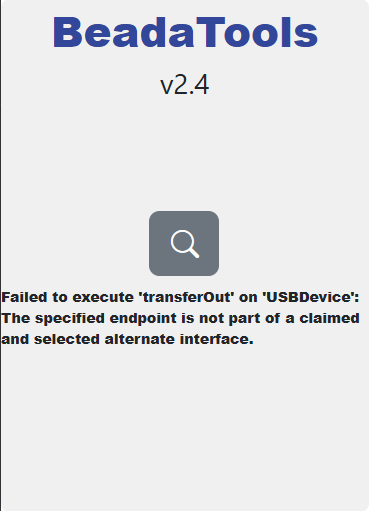

When running BeadaTools I get the following info and i cant seem to access the devices local storage.


Running Windows 11 Pro

[beada]

12 hours ago, OzDeaDMeaT said:

When running BeadaTools I get the following info and i cant seem to access the devices local storage.


Running Windows 11 Pro

Could you try this web version beadatools and it may tell more details

https://www.nxelec.com/service/beadatools/

[John Haber]

To turn off a BeadaPanel display when powering down your PC, follow these steps:

Short Answer: Edit the animation.ini file in the BeadaPanel's console folder and set the backlight value to 0 to turn off the backlight in standby mode.

Full Procedure for Windows Users:

1. Disable Communication:

   • Open AIDA64.
   • Go to File > Preferences > General.
   • Deselect all the checkbox options, click APPLY, and restart your PC.

2. Edit the Configuration File:

   • Download BeadaTools11 from this link.
   • Run BeadaTools11.exe. This will set up a new USB drive in Windows Explorer.
   • If you have multiple BeadaPanel displays, click BeadaTools11.exe again.
   • Open the new drive and locate the animation.ini file in the console folder.
   • Open animation.ini with a text editor (e.g., Notepad) and set backlight = 0.
   • Save the file.

3. Reconnect and Re-enable Communication:

   • Power down your PC and unplug the power cord to exit BeadaPanel's USB mode.
   • Power the PC back on.
   • Re-enable communication with AIDA64:
     • Open AIDA64.
     • Go to File > Preferences > General.
     • Select all checkbox options, click APPLY, and restart your PC.

Example of animation.ini File:



; ;Configuration file for BeadaPanel animation playing ; [plano] type = album width = 800 height = 480 keep-aspect-ratio = true backlight = 0

This configuration will turn off the backlight in standby mode. You can adjust other attributes in the animation.ini file to customize your BeadaPanel display.
