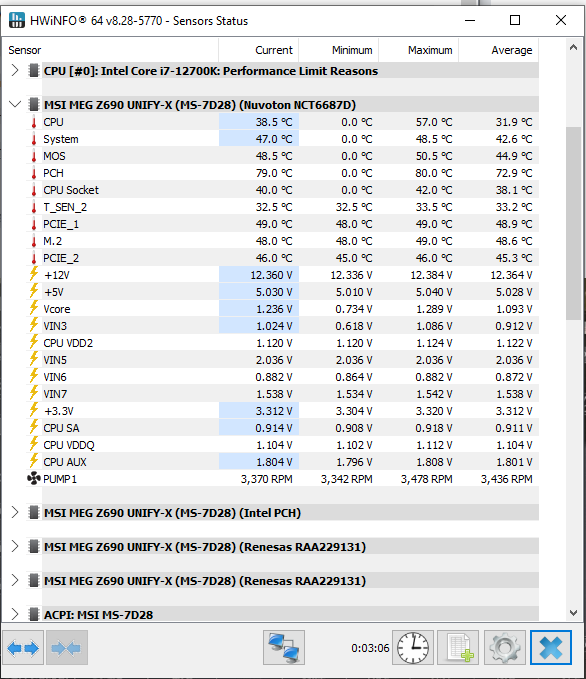

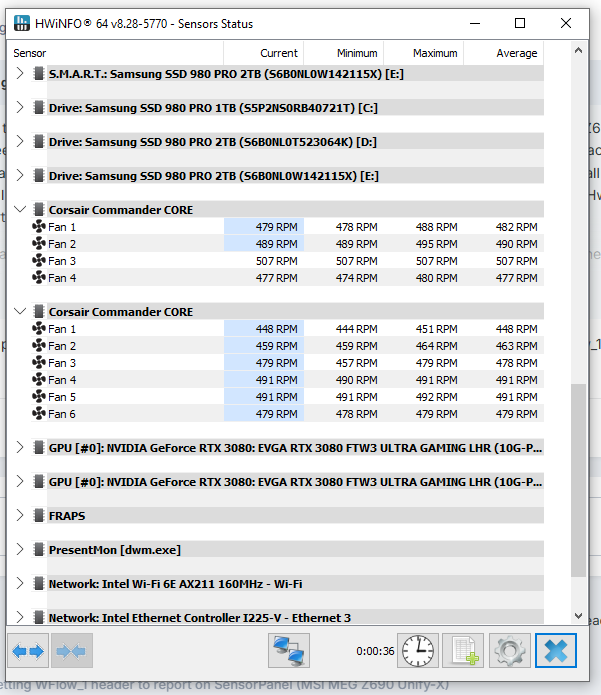

Winterfoot Posted yesterday at 01:58 AM Posted yesterday at 01:58 AM I'm currently trying to get my sensor panel to report flow from the Wflow_1 header on an MSI Unify-X Z690 Mobo. It's been.... a journey... but I Initially found I had a faulty sensor (pinout was wrong) which I replaced, then there was an obstruction in my loop filter which limited flow preventing it from reading. I cleared all that out and now I can get a flow reading from the sensor, but only while I'm in the bios. Both Aida 64 and Hwinfo are not reporting the reading from the Wflow header. I'd like to be able to get this reading on my sensor panel, but I need help getting the program to read the header. any advice or input would be appreciated. On a side note, only partially related, HWinfo can see the corsair commander core for fan speeds, but Aida 64 cannot. This is less critical for me, but would be cool if there was a way to see those too... I have 10 fans in my system. (Edit) both the EC and EC bank switching options are selected on based off past posts on this topic Many thanks Quote

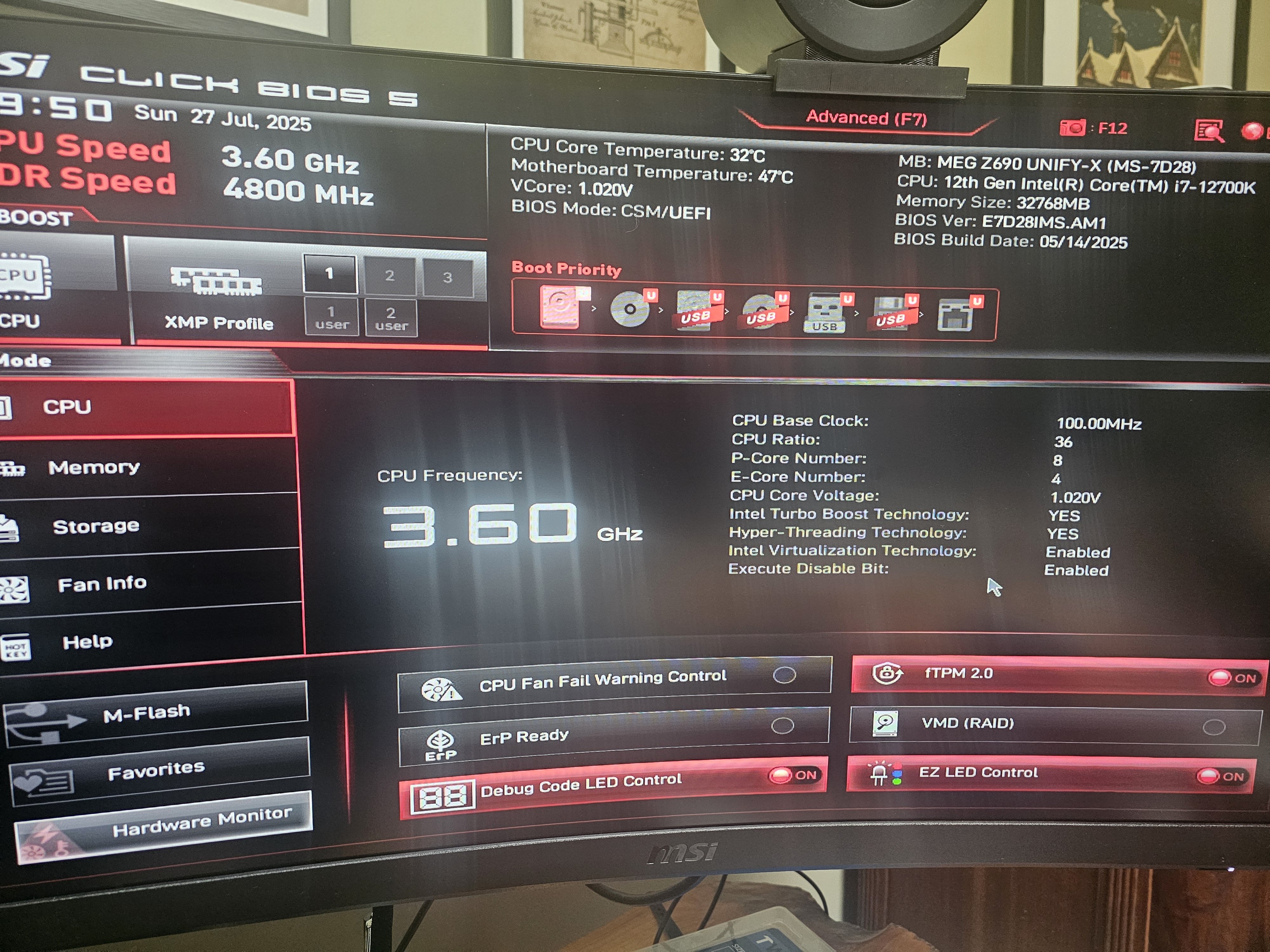

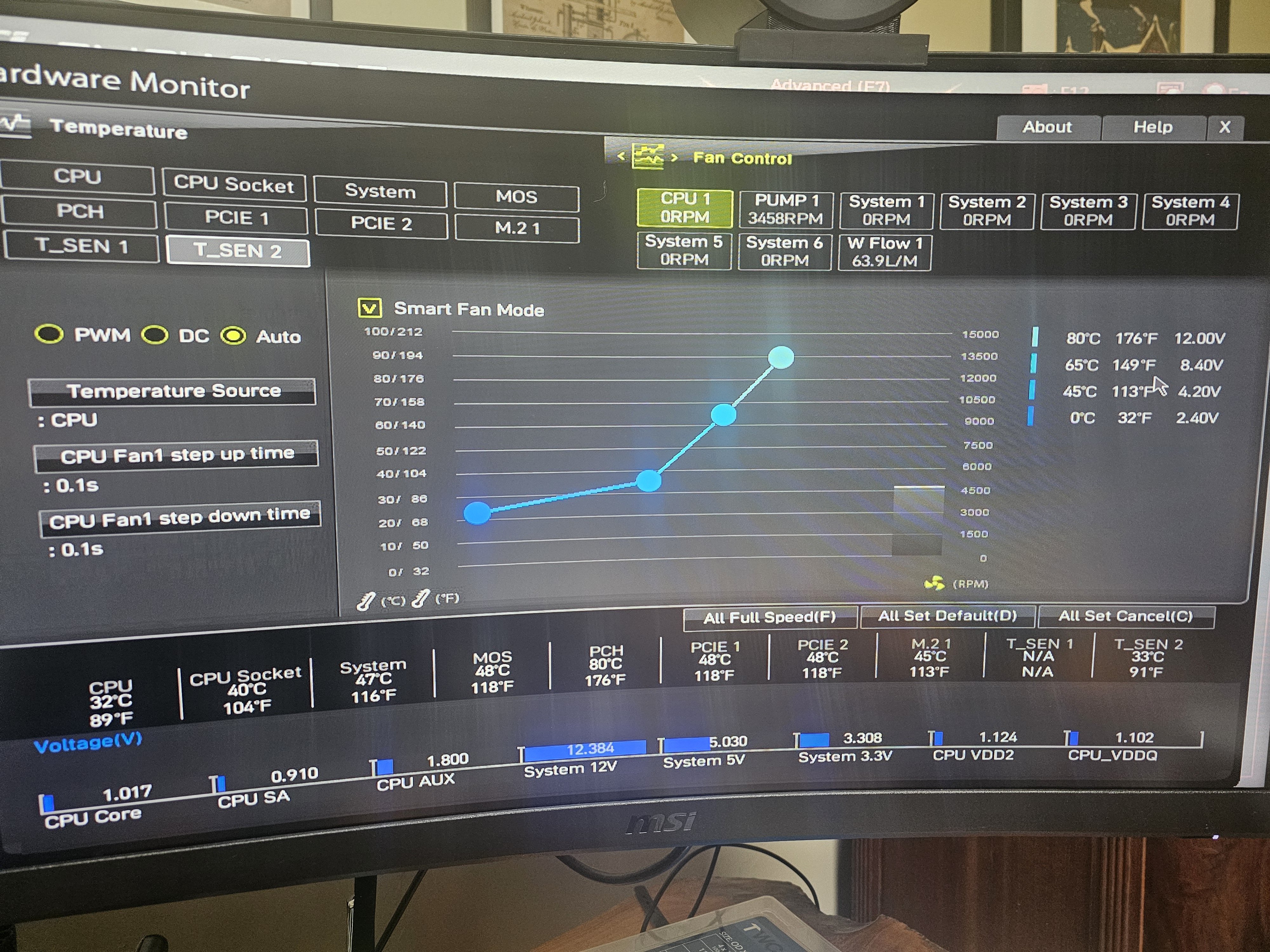

Fiery Posted yesterday at 08:56 AM Posted yesterday at 08:56 AM 6 hours ago, Winterfoot said: I'm currently trying to get my sensor panel to report flow from the Wflow_1 header on an MSI Unify-X Z690 Mobo. It's been.... a journey... but I Initially found I had a faulty sensor (pinout was wrong) which I replaced, then there was an obstruction in my loop filter which limited flow preventing it from reading. I cleared all that out and now I can get a flow reading from the sensor, but only while I'm in the bios. Both Aida 64 and Hwinfo are not reporting the reading from the Wflow header. I'd like to be able to get this reading on my sensor panel, but I need help getting the program to read the header. any advice or input would be appreciated. On a side note, only partially related, HWinfo can see the corsair commander core for fan speeds, but Aida 64 cannot. This is less critical for me, but would be cool if there was a way to see those too... I have 10 fans in my system. (Edit) both the EC and EC bank switching options are selected on based off past posts on this topic Many thanks Can you please post a photo of the BIOS Setup where it shows all fan RPM readings as well as the WFlow_1 reading? Quote
Winterfoot Posted 18 hours ago Author Posted 18 hours ago Everything is the most up to date. I also find it weird that the bios won't detect the corsair fans, but hwinfo 64 does... it's odd Quote
