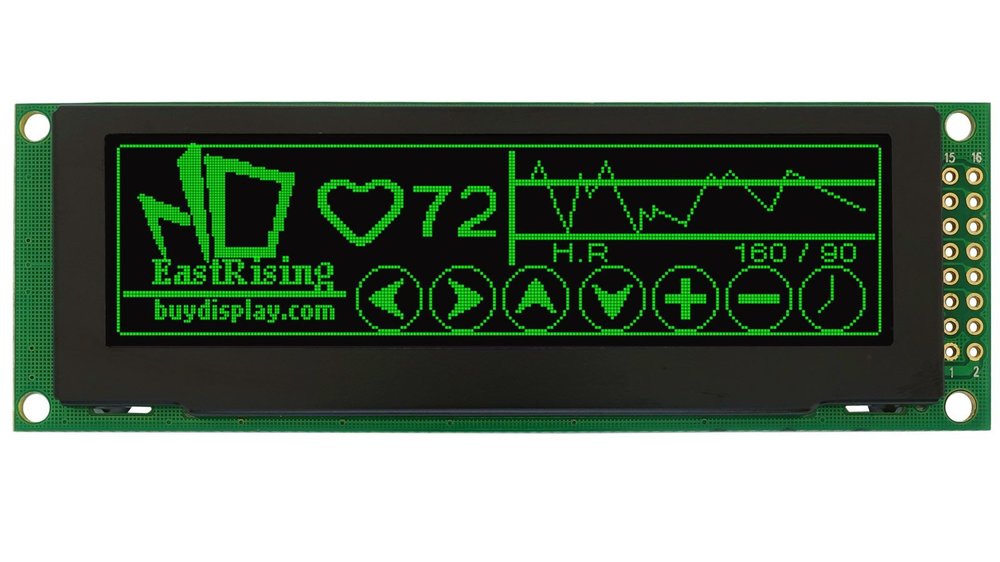

romP44 Posted October 24, 2018 Posted October 24, 2018 Hi! Last year, I was looking for a display to show different information on my home theather computer. I wanted a display to fit in a 5" 1/4 bay and no LCD technology as I don't want backlight that lights all my room when I watch a movie (high contrast required). Then I discovered the 3.2" monochrome OLED display ER-OLEDM032 based on SSD1322 chip. Support in Aida64 was implemented by Fiery. It looks great! Infinite contrast of OLED technology is perfect. 4 different models exist for 4 different colours. Blue: Green: White (what I chose): And yellow: Dimensions: 4 protocols are available. Protocol to be used is set using bridges on the display PCB. 6800 8-bit parallel 8080 8-bit parallel 3 wires SPI 4 wires SPI 6800 and 8080 are obsolete as we don't use anymore parallel port. I chose 4 wires SPI rather than 3 wires SPI because communication speed is a bit higher. To convert USB to 4 wires SPI, I used a FTDI UM232H-B-WE breakout module based on chip FT232H. Here is the schematic of connections between USB breakout module and OLED display: 1 Quote
romP44 Posted October 24, 2018 Author Posted October 24, 2018 The breakout module UM232H-B-WE works very well and was perfect for testing purpose, but now it's time to have something more professional. I started to design a PCB to replace the UM232H-B-WE breakout module, still based on chip FT232H. PCB size will be same as the display and directly plug on the 16 pins connector. Fixing holes are same as the display. It will have a USB type B connector. Side connected to the OLED display: Side with USB connector (connector not displayed on the rendering): Here is the schematic: Schematic ER-OLED032-1 USB interface v1.0.pdfPlease note that this schematic is not tested yet! I ordered 10 PCBs and components. I'm waiting the delivery. 2 samples will be for Fiery for future tests with Aida64. If test is successful, I will certainly sell remaining 8 samples. I will update this page during construction of samples and testing. Quote
romP44 Posted October 24, 2018 Author Posted October 24, 2018 1 hour ago, btmouse said: good job how much is it I bought displays here. It's 27.15$ including header pins without shipping. PCB, components soldered, tested including screws will cost about 27€ without shipping. Quote
btmouse Posted October 25, 2018 Posted October 25, 2018 11 hours ago, romP44 said: 我在这里买了显示器。 这是 27.15美元，包括没有发货的标题针。 PCB，元件焊接，测试包括螺丝将花费约27€，不发货。 I am glad that this is a Chinese lcd manufacturer. Can be bought at a cheap price Quote
romP44 Posted November 7, 2018 Author Posted November 7, 2018 PCBs and components received. Soldering started ! Quote
btmouse Posted November 12, 2018 Posted November 12, 2018 IC to solder itself? I thought he was done. I want to have it Quote
romP44 Posted November 25, 2018 Author Posted November 25, 2018 8 interfaces are available! All were tested: Price per unit (without OLED screen): 26,68€ (without shipping) If you want, I can provide you interface + OLED display assembled: Price per unit (with OLED screen): 55,55€ (without shipping) As described in my first post, 4 OLED colors are available : white, blue, green and yellow. Payement by Paypal. See you, Romain Quote
romP44 Posted November 28, 2018 Author Posted November 28, 2018 On 11/27/2018 at 6:37 AM, btmouse said: € is euro coin ？ Yes it is Quote
btmouse Posted November 30, 2018 Posted November 30, 2018 On 11/28/2018 at 3:09 PM, romP44 said: Yes it is I am in China, afraid that the freight is more expensive than the product. Quote
Fiery Posted November 30, 2018 Posted November 30, 2018 5 hours ago, btmouse said: I am in China, afraid that the freight is more expensive than the product. In your particular case IMHO it would be cheaper to buy the list of components for this display locally, and hire a local professional to build it for you. If he does everything by the book, AIDA64 will work with the display right away. Quote
romP44 Posted November 30, 2018 Author Posted November 30, 2018 7 hours ago, Fiery said: In your particular case IMHO it would be cheaper to buy the list of components for this display locally, and hire a local professional to build it for you. If he does everything by the book, AIDA64 will work with the display right away. I agree. Quote
romP44 Posted February 7, 2019 Author Posted February 7, 2019 Special offer ! Price per unit without OLED screen: 26,68€ 20€ (without shipping) Price per unit with OLED screen: 55,55€ 45€ (without shipping) Quote
Fiery Posted February 8, 2019 Posted February 8, 2019 On 2/7/2019 at 1:44 PM, romP44 said: Special offer ! Price per unit without OLED screen: 26,68€ 20€ (without shipping) Price per unit with OLED screen: 55,55€ 45€ (without shipping) Awesome! Quote
SnarlingFox Posted July 17, 2019 Posted July 17, 2019 On 6/20/2019 at 7:40 PM, romP44 said: PCBs are still available! Have sent you a PM Quote
romP44 Posted July 18, 2019 Author Posted July 18, 2019 On 7/17/2019 at 1:13 PM, SnarlingFox said: Have sent you a PM Replied Quote
SnarlingFox Posted July 18, 2019 Posted July 18, 2019 2 hours ago, romP44 said: Replied And responded again with email to make communication a little easier Thanks, very excited now! Quote
Fiery Posted July 23, 2019 Posted July 23, 2019 On 7/21/2019 at 9:15 PM, romP44 said: 6 PCBs left ! Hurry guys, those devices are great to be used with the AIDA64 LCD module to monitor sensor values! Quote
